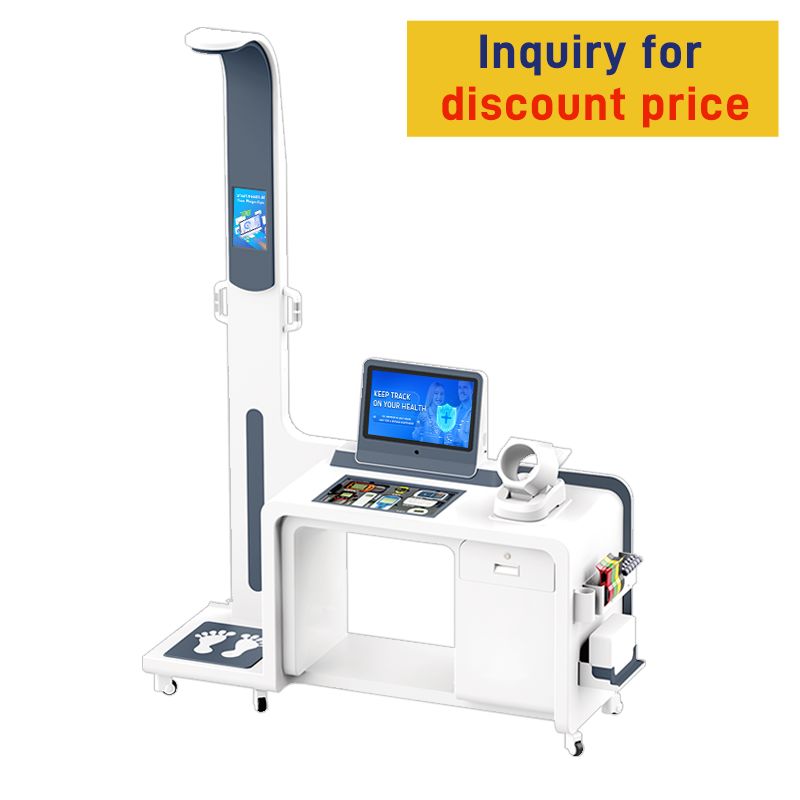

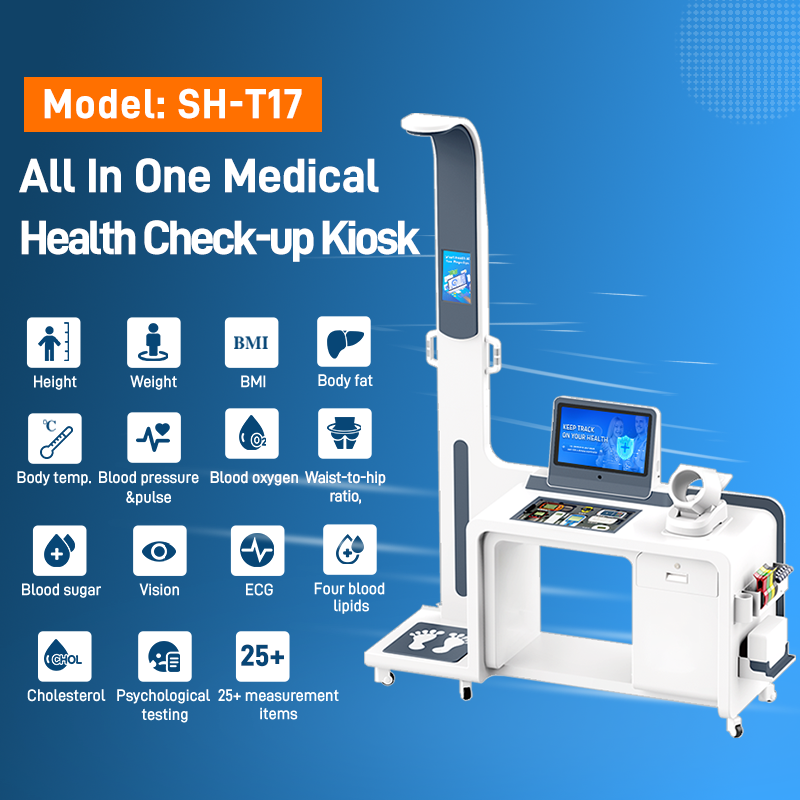

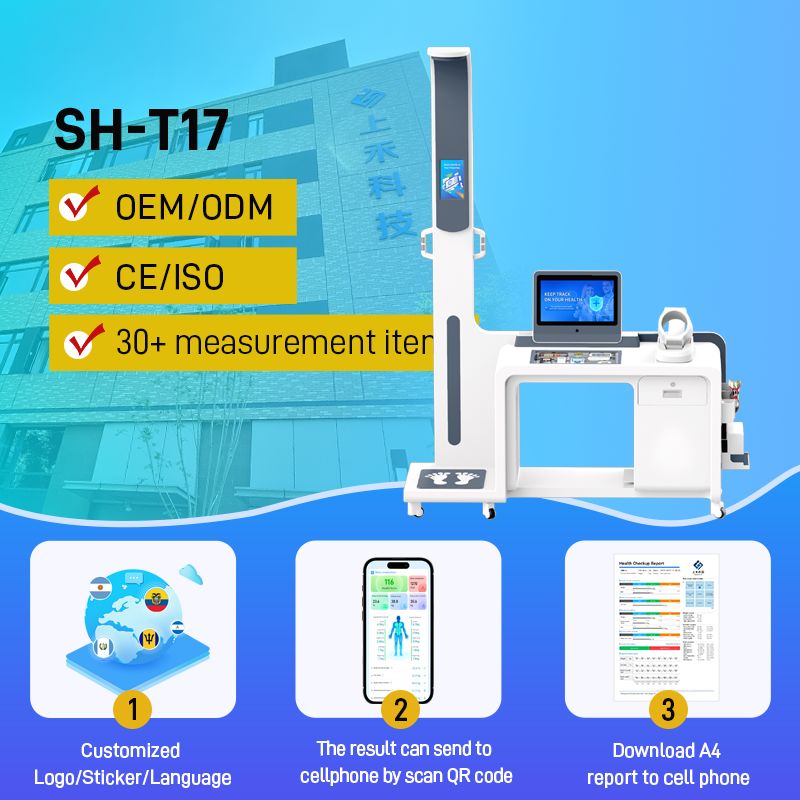

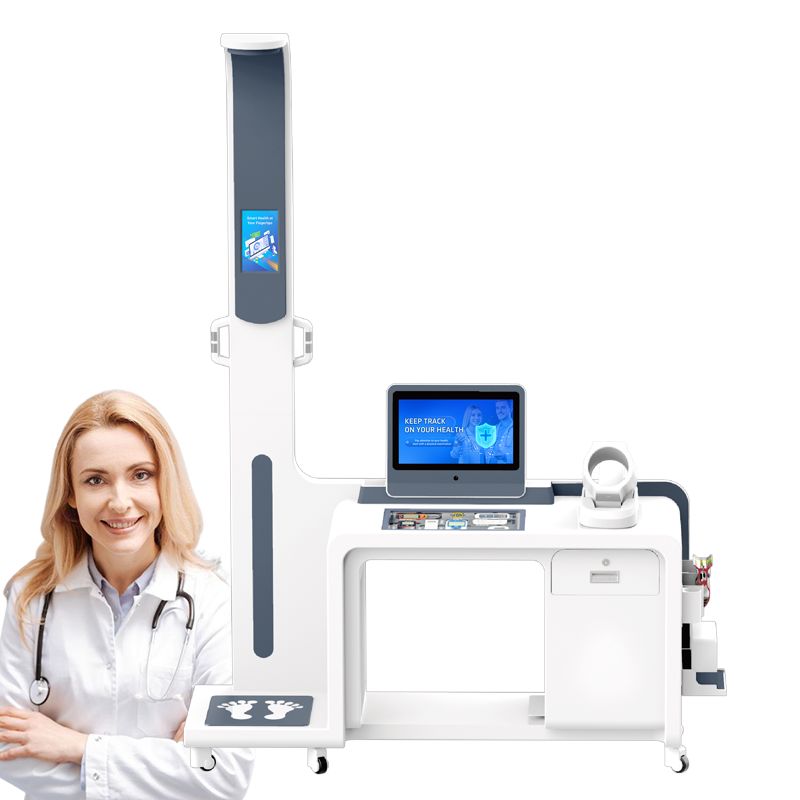

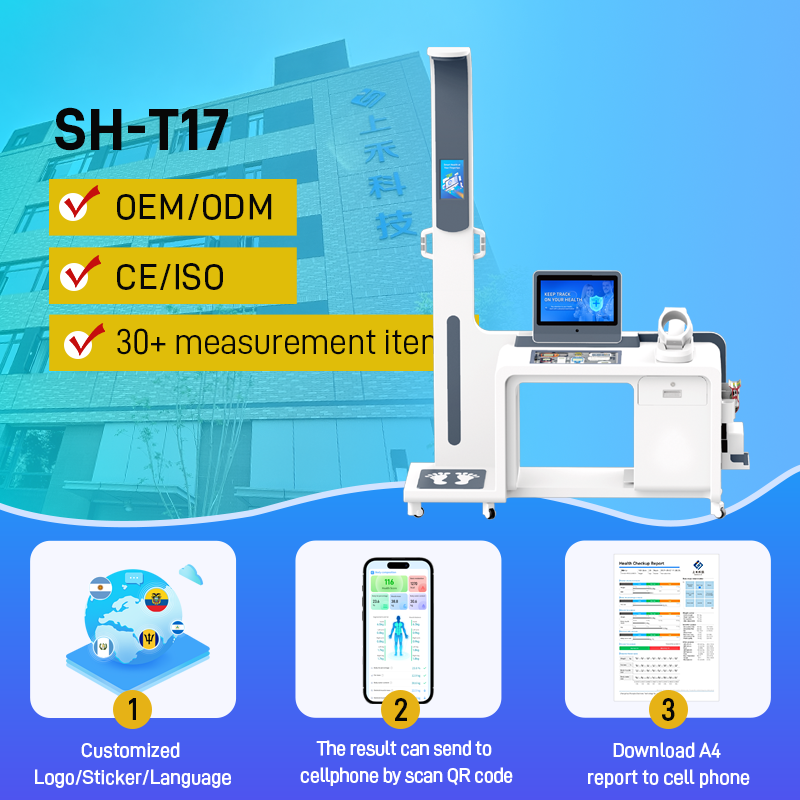

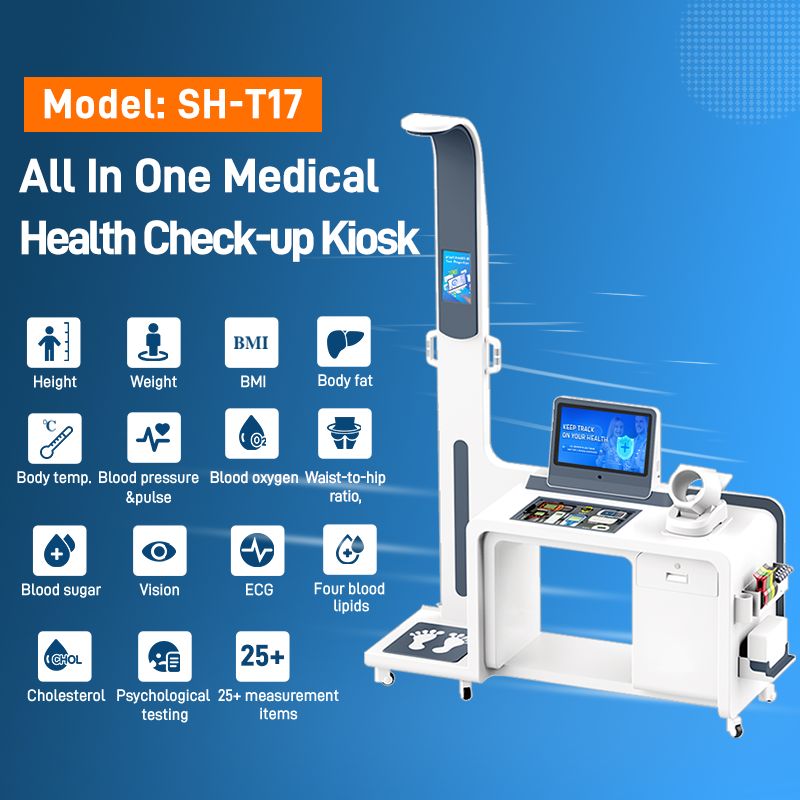

SH-T17 Multi Function Medical Kiosk
SH-T17 Multi Function Medical Kiosk
SH-T17 Multi Function Medical Kiosk SH-T17 Multi Function Medical Kiosk SH-T17 Multi Function Medical Kiosk SH-T17 Multi Function Medical Kiosk SH-T17 Multi Function Medical Kiosk SH-T17 Multi Function Medical Kiosk

SH-T17 Multi Function Medical Kiosk

Detalhes do produto:
Lugar de origem: Henan, China
Marca: SHANGHE
Certificação: CE/ISO13485/OMIL
Número do modelo: SH-T17
Documento: SH-T17-2.pdf
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1 conjunto
Preço: 11399
Detalhes da embalagem: 1700*640*1380mm
Tempo de entrega: 5-15 dias úteis
Termos de pagamento: L/C, D/A, D/P, T/T, MoneyGram, Western Union
Habilidade da fonte: 6000 conjuntos por mês
contacto
  • Informação detalhada
  • Descrição de produto

Informação detalhada
Nome do produto: Quiosque médico multifuncional SH-T17 Palavras -chave: quiosque médico
Material: Armário do metal Personalizado: Linguagem/Logotipo/Adesivo/Cor
Medição da gordura: Intervalo de medição: Gordura:5.0- 75%; metabolismo basal:385 kcal- 5000 kcal; Pressão arterial: 0-299 mmHg (0 kPa-39,9 kPa); Faixa de pulso: 40-180 batimentos/min
Tensão da fonte de alimentação: AC160V-250V, 50HZ Transferência de dados: Padrão: RS232, WiFi; Opcional: Bluetooth, 3G/4G, RJ45
Uso: Hospital, Clínica, Farmácia, Schoos, Ginásio, Shopping Center, etc. Idiomas: Suporta 17 idiomas, incluindo inglês, e pode alternar entre eles livremente

Descrição de produto

Product Specifications:

Model
SH-T17 Smart Health Management All-in-One Machine
HD LCD Screen
15.6-inch + 7-inch HD LCD screen, play videos and pictures, intelligent display of results
Intelligent Recognition
Standard face recognition login, user input login, etc. Optional: IC/ID card, QR code scanning, etc. (other methods can be
customized)
Height
Measuring range: 20-205cm; accuracy: ±0.5cm; division value: 0.5cm or 0.1cm adjustable
Weight
Measuring range: 2.0-500kg; accuracy: ±0.1kg; division value: 0.1kg or 0.01kg adjustable
Blood Pressure
Medical grade upper arm tube pulse wave blood pressure monitor, pulse wave blood pressure measurement method, 17-42cm, accuracy
within ±2mmHg
Body Fat
BIA human bioelectrical impedance measurement technology, body fat mass, body fat percentage, basal metabolism, body water mass,
body water percentage, body bone mass, body muscle mass, body muscle percentage, etc.
Body Temperature
Temperature range: 32℃-42.9℃ Measurement error: ±0.2℃ Resolution: 0.1℃ Measuring distance: 1-5cm
Blood Oxygen
Measurement accuracy: within the range of 70%~99% Measurement error is ±2% Resolution: 1%
Blood Sugar
Measuring range: 10.8-600mg/dl (0.6-33.3mmol/L)
Uric Acid
Measuring range: 3-20mg/dl (0.19-1.19mmol/L)
Cholesterol
Measuring range: 100-500mg/dl (2.29-12.93mmol/L)
Waist Circumference
Smart Bluetooth waist ruler, detect waist circumference, hip circumference, waist-to-hip ratio
Urinalysis
14 health indicators including white blood cells, glucose, calcium ions, microalbumin, pH value, etc.
12-lead ECG
Standard 12-lead, dynamic electrocardiogram
Four Blood Lipids
Total cholesterol, HDL, triglycerides, LDL
Hemoglobin
Hemoglobin and hematocrit
Vision
Test content: left and right eye vision test, left and right astigmatism test, color weakness and color blindness test
Mental Health Assessment
Comprehensive psychological assessment in 11 aspects including Hamilton anxiety, depression, loneliness, personality disorder,
interpersonal relationships, life satisfaction, Pittsburgh sleep quality, etc.
TCM
Yang deficiency constitution, Yin deficiency constitution, Qi deficiency constitution, Phlegm-damp constitution, Damp-heat
constitution, Blood stasis constitution, Special constitution, Qi stagnation constitution, Peaceful constitution
Other Items
The device supports more than 20 physical examination items and more than 100 health indicators, which can be flexibly selected
according to needs (customizable and expandable)
Data Transfer
Supports transmission to the Internet or LAN via WIFI/RJ45 network port, as well as QR code communication, data export, etc.
(customizable and docking data)
A4 Print Report
A4 printing
Optional Functions
Bone density, rapid ECG, alcohol test, arteriosclerosis, glycosylated hemoglobin, BIM turntable, dietary pyramid



Product Description:

SH-T17 Health Checkup Kiosk Machine Functions:

1.Smart OS operating system

2.15.6-inch + 7-inch LCD touch screen, displays indoor temperature and current time in standby mode, customize videos and images for brand promotion.

3. Three ways to get the report: ①thermal printer②phone report③download report④A4 report

4.AI robot guides operation, automatic voice broadcast measurement results.

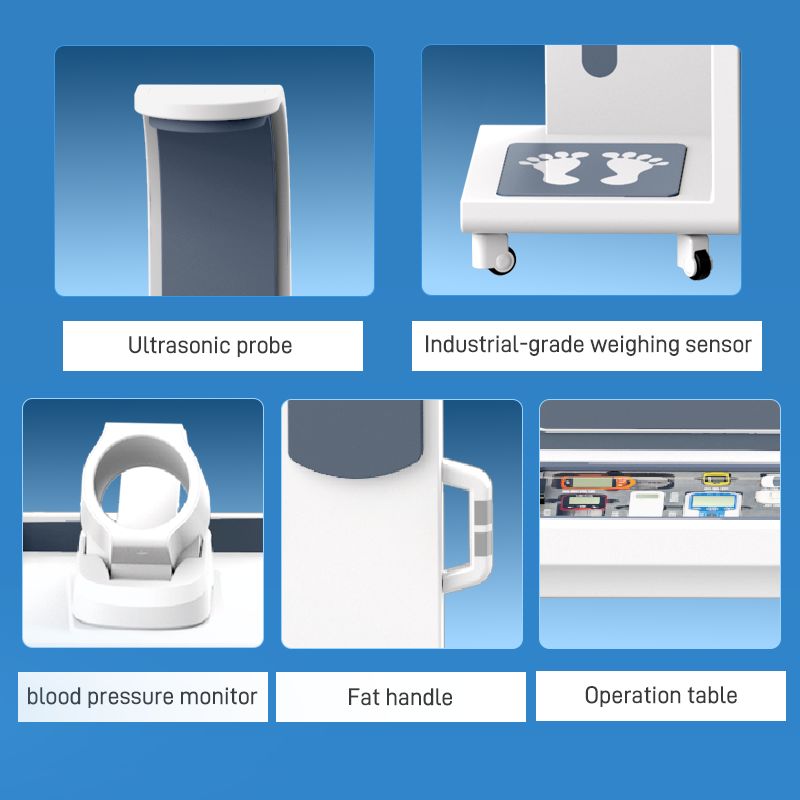

5.Ultrasonic/Millimeter wave technology to measure height (non-touch).

6.Precision balanced beam resistive strain sensor.

7.Supports 17 languages including English, can switch languages freely.

8.Intelligent pressurization technology, oscillometric measurement method

(supports left and right arm)

9.Intelligent recognition: standard: face recognition, user input login;

10.Blood pressure measurement: 0-299mmHg(0kPa-39.9kPa);  Pulse range:40-180 beats/min.

11.Data transfer: RS232 serial port,WiFi (standard); Bluetooth/4G/cloud interface (optional), etc, data can be transmitted to the customer's software, such as HIS/LIS system/APP/PC, etc.

12. Body fat measurement indicators: body fat percentage, body water percentage, muscle mass percentage, basal metabolic rate, inorganic salts, etc.

13.Optional functions:Thailand IC/ID card, QR code, etc.



SH-T17 Multi Function Medical Kiosk 0

SH-T17 Multi Function Medical Kiosk 1

SH-T17 Multi Function Medical Kiosk 2

Certifications:

SH-T17 Multi Function Medical Kiosk 3

Hot Sale Products:

SH-T17 Multi Function Medical Kiosk 4

Company Profile:

SH-T17 Multi Function Medical Kiosk 5

SH-T17 Multi Function Medical Kiosk 6
